1U WDM Transmission Platform
WDM Transmission system, CWDM, DWDM, OADM, 40, 80, 120km.
- General Details
- Features
- Specifications
- Applications
- Ordering Informations
TARLUZ T2000 series WDM transmission system is a cost effective, 1 RU chassis and multi-service WDM transmission platform which provides 8-ch wavelengths for point to point (P2P) application, or 4 wavelengths ring application per device, more wavelengths application is possible by stacking multiple boxes at each location. Each channel port supports bit rate from 1Gb/s to 10Gb/s. It integrates 3R (CDR) for every channel to get better performance. LLF and TX sync functions are also supported, and can be configured by software. It supports 1+1 optical channel and optical line protection. It is stackable for future expansion. T2000 complies with standard of ITU G.709, FCC, RoHS and VCCI.
- 8 channels of multiservice transmission
- Hot pluggable SFP/SFP+, 1Gb/s to 40Gb/s
- Point to point, ring and stacking topology
- 3R (CDR) for all channel, T2000A Support GFEC and EFEC;
- EDFA for amplification
- 1+1 Optical channel protection, 1+1 OLP protection
- Configurable LLF and Configurable Tx Sync
- Pluggable power supply, Pluggable fan tray, Pluggable dust filter
Parameters | Specifications |
Max. Single System Capacity | 8 Channels / 80Gbps |
Wavelengths | Comply with ITU-I G.695 standard |
Transmission Rate | PDH/SDH/SONET: ATM, STM-1~STM-64, OC-3~OC-192 Ethernet: FE, GE, 10GE or 40GE SR4 FICON/ESCON/Fiber Channel: 1 x FC, 2 x FC, 4 x FC, 8 x FC CPRI2/4/5/10, OBSAI1/2/4/8 SDI, CATV etc |
Interface | 8*100Mbps ~ 10Gbps SFP/SFP+ port 2*OSC SFP port 1*Mux/Demux WDM Slot 2*EDFA/OLP/DCM Slot LAN(RJ45) / *OSC (SFP LC)/RS232C(DB9) |
Physical Network Topology | Point to point, point to multipoint, link, loop, single-fiber bi-directional and so on |
Monitoring Protocol | SNMP/Syslog/Telnet/ARP/ICMP/Web GUI |
Dimension | 1U, 440(W) x 393(D) x 44.4(H) mm |
Weight | 7.5kg |
Working Temperature | 0℃ ~ 50℃ |
Storage Temperature | -40℃ ~ 85℃ |
Power Supply | AC: 100 ~ 120 / 200 ~ 240V 50 ~ 60Hz, DC: -48V |
Certificate | VCCI: Class A / CE: EN55022, EN55024, EN61000-3-2, EN61000-3-3 / FCC: Part 15 B |
Power Consumption | ≤100W |

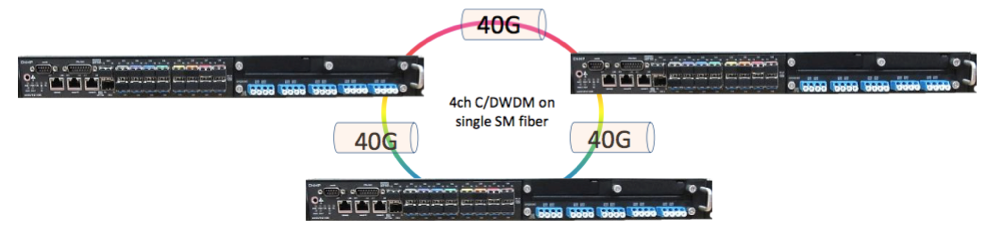

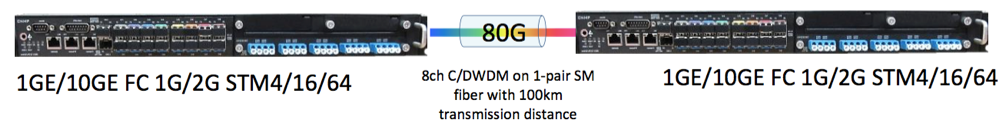

1. Multi rate application on between two Data Center (Ethernet, SDH/SONET, Fiber Channel, etc)

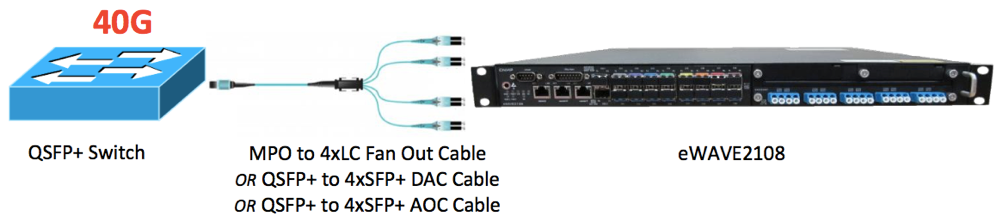

2. 40G Solution
Block Diagram

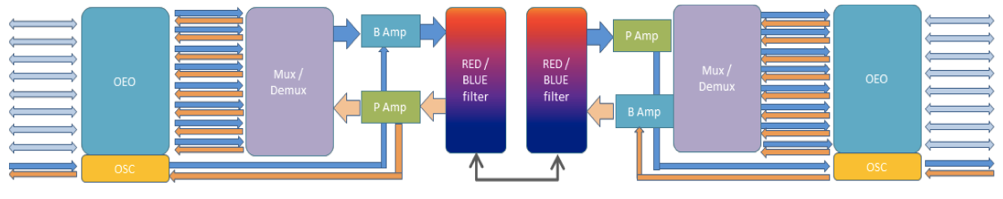

- DWDM 8 channel Single fiber bi-directional

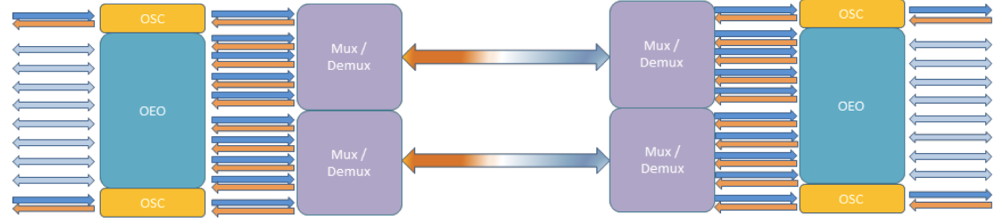

- CWDM 4 channel single fiber bi-directional * 2
Ordering Information
T2000 | X | X |
WDM Transmission System Platform | Platform | Power Supply |
T2000 = Standard system T2000A = Support GFEC & EFEC |
DAC = Dual AC DDC = Dual DC ADC = AC & DC X = Custom |
WDM Card
XX | X | X | (XX) | |
WDM Card | Channel | Wavelength | Physical Network Topology | Function |
02 = 2 Channels 04 = 4 Channels 08 = 8 Channels 16 = 16 Channels |
C = CWDM D = DWDM X = Custom |
D = Dual-fiber bidirectional B = Single-fiber bidirectional |
S1 = Band D21-D28 S2 = Band D29-D36 B = PTP R = Ring XX = Custom |
EDFA Card
XX | X | X | XXX | |
EDFA Card | Maximum Output | Wavelength | Type | Function |
12 = +12dBm 17 = +17dBm XX = Custom |
R = Red band B = Blue band C = C band |
P = Pre-Amplify B = Booster Amplifier L = Line Amplifier |
X01 = Tap port X02 = OSC |
DCM Card
XXX | XXX | |
DCM Card | Transmission Distance | Type |
020 = 20KM 040 = 40KM 060 = 60KM 080 = 80KM XXX = XXXKM |
652 = G652 655 = G655 Fiber |
OLP Card
XX | |
OLP Card | Function |
01 = 1+1 Protection |
