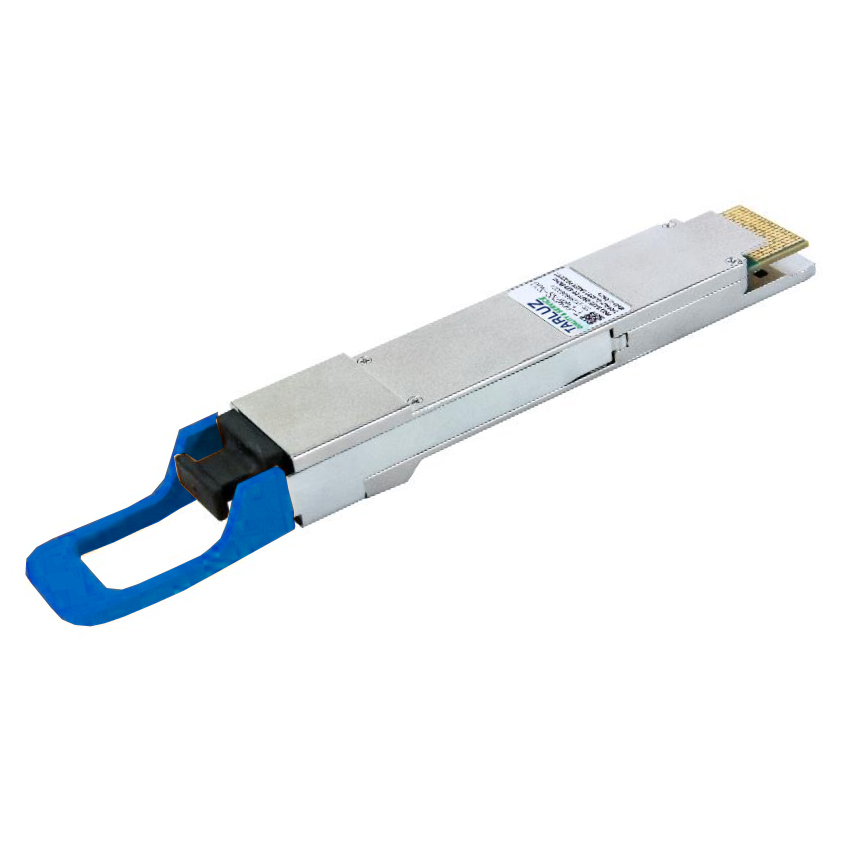

400GB QSFP-DD-XDR4 1310nm 2km Optical Transceiver
400G QSFP-DD-DR4+, MPO/MTP-12 Connector, SMF, 2km over SMF
General Details
TARLUZ 400GBASE-XDR4 (or DR4+) optical module supports transmission distance of up to 2km over SMF by MTP/MPO-12 connector. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol, and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as a 4x100G breakout to 4x QSFP28-DR-100G.
Features
- Hot-pluggable QSFP-DD form factor
- Maximum link length of 2km over SMF
- 4 channels full-duplex transceiver module, Transmission data rate up to 100Gbps per channel
- Low power consumption <12W
- MPO-12/MTP-12 connector receptacle
- Built-in digital diagnostic function
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant (lead-free)
Specifications
| Parameters | Specifications |
| Form Type | QSFP-DD |
| Max Data Rate | 400Gbps |
| Optical Components | EML |
| Wavelength | 1310nm |
| Max Cable Distance | 2km@SMF |
| Interface | MTP/MPO-12 |
| Cable Type | SMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
Applications
- 400G Ethernet
- Infiniband Interconnect
- Datacenter Enterprise Networking
