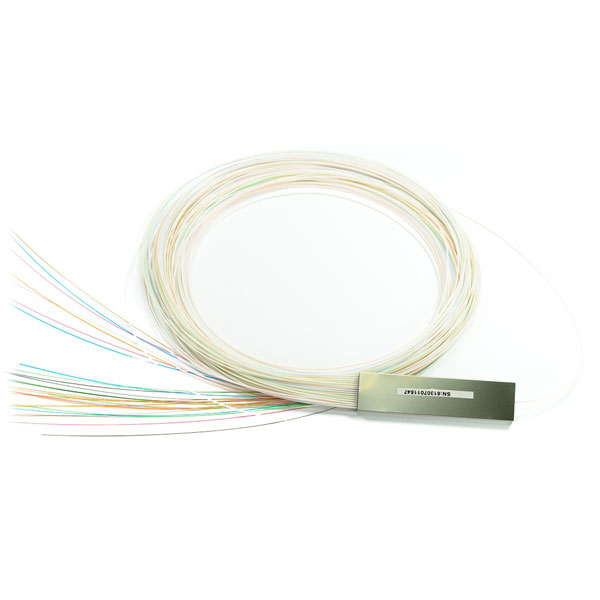

Blockless type PLC Splitters (1xN)
Blockless type, Fiber input: 0.9mm, Fiber output: 0.9 mm, G.657A Fiber, with/out connector, PC/UPC/APC polishing, customized cable lengths.
Planar Lightwave Circuit (PLC) Splitter is fabricated using silica optical wave guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and it is widely used in PON (EPON, GPON, and future PON) networks to realize optical signal power management. Tarluz provides a whole series of 1xN and 2xN splitters from 1×2, to 1×64, 1×128 that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements.
Compared with FBT Coupler, the PLC splitters with more advantage, The PLC splitter with wide transmission wavelengths, the loss to different wavelength transmission is not sensitive, so it with wide application for different fiber network, High spectral uniformity, It can splitter the signals equally, compact size in many splitting channels and the cost advantage is very obvious on many splitter channels
This series PLC splitter with multiple package type: Bare fiber type, Blockless type, Cassette Type, LGX type, as well as Rack Chassis Type. Moreover, Tarluz PLC splitters are available in various fan-out configurations, with pre-terminated fiber optic connectors (SC/PC, SC/APC, FC/PC, FC/APC etc.).
Standard
1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) YD/T1117-2001
| Type | 1×2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64 | |
| Operating Wavelength (nm) | 1260-1650 | ||||||
| Insertion Loss (dB) | Typical | 3.7 | 7.0 | 10.2 | 13.2 | 16.2 | 19.7 |
| Max. | 4.0 | 7.3 | 10.5 | 13.7 | 16.8 | 20.4 | |
| Loss Uniformity (dB) Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | |
| PDL (dB) Max | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | |
| TDL (dB) Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Return Loss (dB) Min | UPC Connector | 50 | |||||
| APC Connector | 55 | ||||||
| Directivity (dB) | 55 | ||||||
| Power Handling (mW) | 300 | ||||||
| Pigtail Length (m) | 1.0 (±0.1) or customer specified | ||||||
| Fiber Type | ITU G652. A1 or customer specified | ||||||
| Operating Temperature (°C) | -40 ~ 85 | ||||||
| Storage Temperature (°C) | -40 ~ 85 | ||||||
Note: 1. All measurement at room temperature and excluding connector loss;
2. For devices with connectors, insertion loss will be 0.3dB higher, Return Loss >55dB (APC), >50dB (UPC).
- FTTX Systems
- PON (GPON, EPON, BPON etc) Networks
- CATV Links
- Optical Signal Distribution
