CWDM Mux/Demux (LGX Type) (4, 8, 16, 18-Channel)
LGX type CWDM, support 4-ch, 8-ch, 16-ch and 18-ch.
General Details
The CWDM (Coarse wavelength division multiplexer) Multiplexing and De-multiplexing devices featured with low insertion loss, high channel isolation, wide passband, low temperature sensitivity and epoxy free optical path. The CWDM Module is an device for expanding your optical network.
Features
- Low Insertion Loss
- High channel isolation
- Wide passband
- Excellent stability and reliability
- Epoxy free optical path
Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | 18 Channel | |||||
| Mux | Demux | Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | 1270~1610/1271~1611 | ||||||||
| Center wavelength Accuracy (nm) | ±0.5 | ||||||||
| Channel Spacing (nm) | 20 | ||||||||
| Channel Passband (@-0.5dB bandwidth (nm) | +/-7.5/+/-6.5 | ||||||||
| Insertion Loss (dB) | ≤1.5 | ≤2.5 | ≤3.5 | ≤3.5 | |||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ≤1.5 | |||||
| Channel Ripple (dB) | 0.3 | ||||||||
| Isolation (dB) | Adjacent | >30 | |||||||
| Non-adjacent | >40 | ||||||||
| Insertion Loss (dB) | Express with filter | >30 | |||||||
| Express without filter | >12 | ||||||||
| Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||||
| Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||||
| Polarization Mode Dispersion (ps) | <0.1 | ||||||||
| Directivity (dB) | >50 | ||||||||
| Return Loss (dB) | >45 | ||||||||
| Maximum Power Handling (mW) | 300 | ||||||||
| Opterating Temperature (°C) | -40 ~ +85 | ||||||||
| Storage Temperature (°C) | -40 ~ +85 | ||||||||
| Package dimension (mm)(LGX box) | L155.5 x W102(129) x H29 | ||||||||
1. Above specifications are for devices without connector.
2. Specifications may change without notice.
Applications
- WDM network
- Fiber link monitoring
- Access network
1000M Ethernet Media Converter
Simplex/Duplex SC single mode/multi mode port, transmission distance up to 80km, plug and play

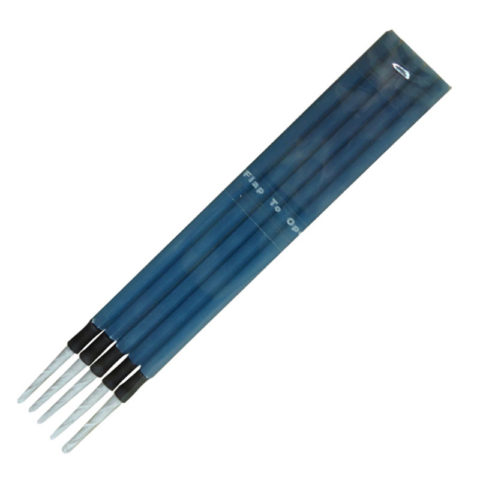

1.25mm Optical Stick Cleaning Swabs
1.25mm fiber optic sticks for LC/MU and other 1.25mm ferrules.

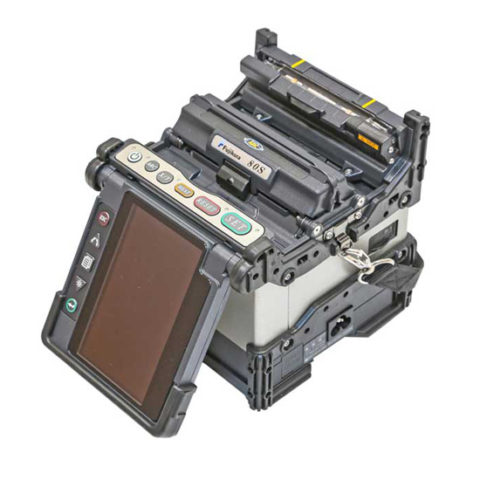

Fujikura FSM-80S Fusion Splicer
