E2000 – E2000 Fiber Optic Adapter
E2000 to E2000, high standard ceramic sleeves. plastic PC/APC Polishing
- General Details
- Features
- Specifications
Fiber Optic adapters (or called fiber optic adaptors, fiber optic coupler or fiber optic mating sleeves). It is used for connecting two terminated fiber cables (fiber connector). There are standard adaptors like SC-SC, FC-FC, and also there are hybrid adaptors like FC-LC, ST-SC, etc. Tarluz provides comprehensive fiber optic adaptors, including ST, SC, FC, LC, MTRJ, MPO and MU style fiber optic adapters for both multimode and single-mode fiber applications. We also can offer fiber adapter plates for ST-, SC-, MTRJ- or LC-type connections.

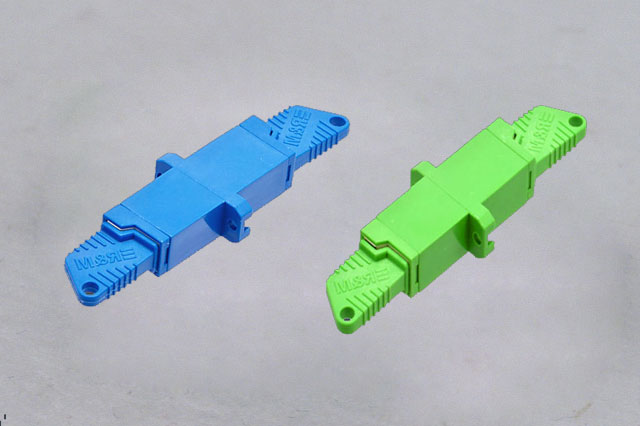

E2000 Adaptors come with a ceramic sleeves for Singlemode and Multimode. The housing is available in blue, green or beige and a flangeless body option.
- Compact design
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- High precision alignment
- Low insertion and return loss and back reflection
- Choice of metal or plastic housing, mount styles & flange options
Parameter | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
SM | MM | SM | MM | SM | |||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | |
Insertion Loss (Typical) (dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeatability (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | >1000 | >1000 | >1000 | ||||||
Operating Temperature (°C) | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature (°C) | -45~85 | -45~85 | -45~85 |
