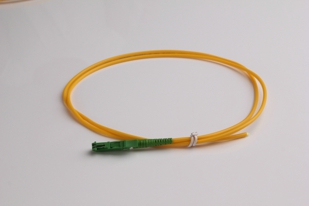

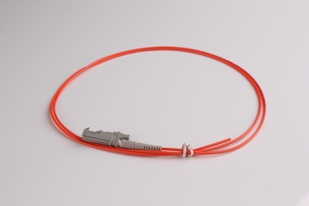

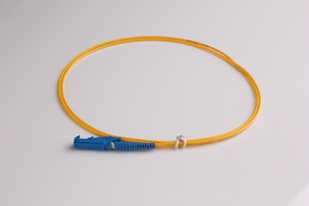

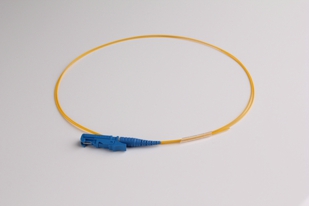

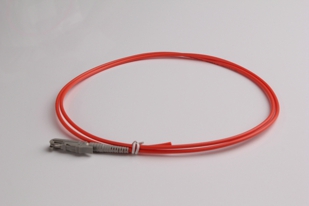

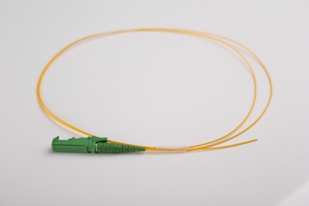

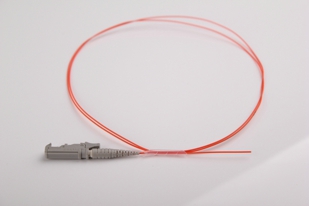

E2000 Fiber Optic Pigtail
E2000 Optical Pigtail, Classification: Singlemode OS1, OS2 or Multimode (OM2, OM3, OM4), Jacket: 0.9mm, 2.0mm,3.0mm
The fiber optical pigtail is a single, short, usually tight-buffered, optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end. The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk “breaks out” the multi-fiber cable into its component fibers for connection to the end equipment. Pigtails can have female or male connectors. Female connectors could be mounted in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.
Tarluz offers full product line of fiber optic pigtail, single mode, multimode; 0.9mm tight buffer, 2.0mm or 3.0mm jacket, different jacket like PVC, LSZH or OFNR; beside it, we supply various fiber classification like OS1, OS2, OM2, OM3, OM4. the fiber connector is various like LC, FC, SC, ST, MU, MTRJ, MU, etc. the with PC, UPC or angled polish contact APC. feel free to contact us for more information.
Ordering Instruction
| Item | Plating material | PVC, LSZH, OFNP |
| 1 | Connector | ST, SC, LC, FC, LC/APC, SC/APC, FC/APC, FDDI, SMA, ESCON, MTP, MPO, MTP/APC, MPO/APC, MTRJ, MU, E2000 |
| 2 | Polishing type | PC < – 45dB UPC (Ultra Physical Contact) <–50dB APC(Angled Physical Contact) <–60dB |
| 3 | Fiber type | Single Mode 9/125μm OS1, OS2 Multimode 62.5/125μm OM1, Multimode 50/125μm OM2, Multimode 50/125μm OM3 10Gb gig, Multimode 50/125μm 10Gb OM |
| 4 | Jacket diameter (mm) | Ø3, Ø2, Ø1.6, Ø0.9 |
| 5 | Length (m) | L=1, 2, 3, 4………….meter or customized |
- Compliant with European (EN 186270) and International (IEC 61754-15) standards
- 100% optically inspected and tested for insertion loss
- Riser or Plenum rated, PVC, OFNR, LSZH and RoHS cables available
- Low insertion loss and High return loss
- IEC, TIA/EIA, Telcordia compliant
- Custom fiber optic cable lengths and jacket colors
- Various fiber types and wavelengths, typical 9/125 single mode, 50/125nm multimode and 62.5/125nm multimode (OM2, OM3, OM4)
- Good packing, competitive prices and very fast delivery
| Type Parameters | Single-mode | Multimode | ||
| Connector A | LC | |||
| Polishing Type | PC | UPC | APC | PC |
| Insertion Loss (dB) | ≤0.2 | ≤0.25 | ||
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | N/A |
| Repeatability (dB) | IL≤0.2 RL≤5 | IL≤0.1 | ||
| Vibration (dB) | IL≤0.2 RL≤5 | IL≤0.2 dB | ||
| Exchangeability (dB) | IL≤0.2 RL≤5 | IL≤0.2 dB | ||
| Tensile Strength | 10kg | |||
| Vibration (dB) | ≤0.2 | |||
| Durability | ≤0.2 typical change, 1000 matings | |||
| Operation Temperature (℃) | -40 ~ +80 | |||
| Ferrule Material | Zirconia Ceramic | |||
| Jacket Material | PVC, LSZH, OFNR | |||
| Cable Length (m) | 1, 2, 5, 10 or customized | |||
| Cable Diameter (mm) | Ø0.9, Ø2.0, Ø3.0 | |||
- Optical Fiber Communications, Video, LAN, CATV Systems
- Optical Network Equipment, Optical Test Equipment
- Module Pigtails, Multi-media, Premise
- Active device termination installations
