Fig-8 Self-supporting Fiber Optic Cable GYTC8A
The fiber optic cable consists of a bundle of glass threads (fiber core), each of which is capable of transmitting messages modulated onto light waves. featured with the following advantages compared with traditional copper cable: Fiber optic cables have a much greater bandwidth to carry data than copper cables. Fiber optic cables are less susceptible than copper cables to interference. Fiber optic cables are much thinner and lighter than copper wires.

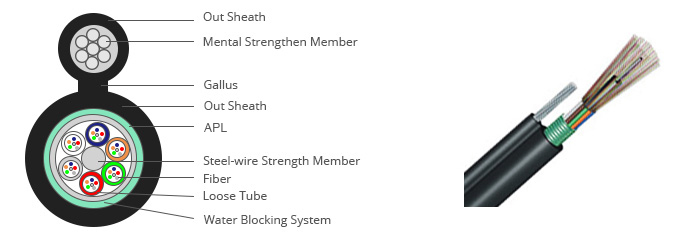

The 250um bare fiber are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Installation method
Aerial.
Standards
YD/T901-2009
IEC 60794-1
- High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
Transmission Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter (mm) | Cable Weight kg/km | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius mm | |||
| Long Term | Short Term | Long Term | Short Term | Static | Dynamic | ||||||
| GYTC8A-2~6 | 2~6 | 1 | 4 | 9.4x 18.4 | 220 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYTC8A-8~12 | 8~12 | 2 | 3 | 9.4x 18.4 | 220 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYTC8A-14~18 | 14~18 | 3 | 2 | 9.4x 18.4 | 220 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYTC8A-20~24 | 20~24 | 4 | 1 | 9.4x 18.4 | 220 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYTC8A-26~30 | 26~30 | 5 | 0 | 9.4x 18.4 | 220 | 600 | 1500 | 300 | 1000 | 10D | 20D |
- FTTH Network GPON, EPON.
- Rural communication
- Local trunk line
- CATV
- Computer networks system
