Fujikura FSM-80S Fusion Splicer
Automatic and fully programmable wind protector, 14-second tube heater, 200 splices/shrinks, multi-function transit case with integrated workstation
- General Details
- Features
- Specifications
- Applications
The Fujikura FSM-80S Fusion Splicer is a fully ruggedized, core-to-core alignment, providing consistent, low loss, splice performance. Compared with FSM-60S Fusion Splicer (Discontinued), the new design streamlines the steps required to complete splices, resulting in greater productivity. “Configurable automation” features allows the field enginner to customize the operation of the machine to best suit the particular splicing technique and process. The new programmable “automatic wind protector” closes and begins the splicing process after clamping the fibers in position or pressing the “set” button. Once operator complete the splicing, engineercould decide the wind protector to ben opened and the sheath clamps. Moreover, the fusion with the world fastest shrinking time with about 14 seconds.
- Automated and programmable wind protector
- 7-second splicing time, 14-second automated tube heater
- Fully ruggedized for shock, dust and moisture
- Li-ion battery with 200 splices/shrinks per charge
- 5 mm cleave length for splice on connector or small package need
- Sheath clamp or fiber holder operation
- On-board training and support videos
- Internet software upgrades

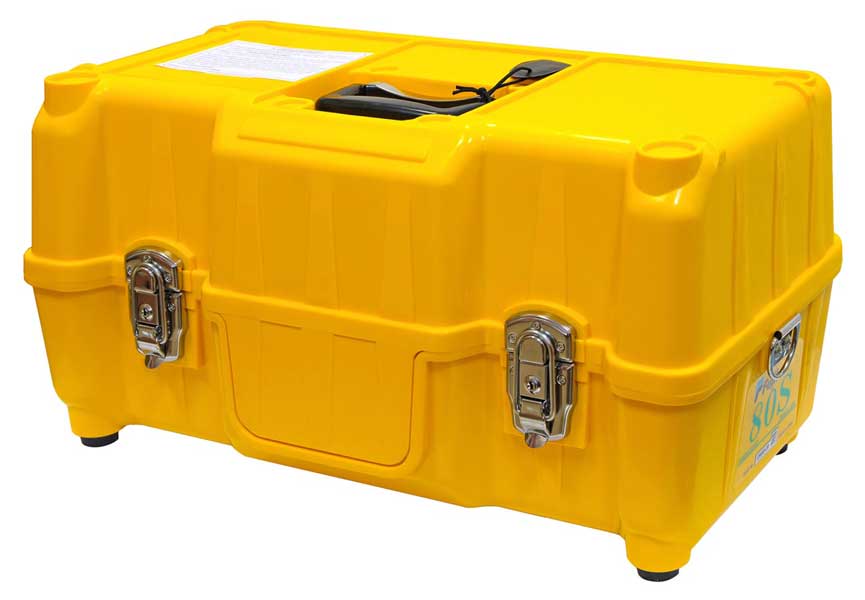

- Multi-function transit case with integrated workstation
Applicable fibres | SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others |
Fibre Count | Single |
Cladding diameter | 80 to 150μm |
Coating diameter | 100 to 1000μm |
Fibre cleaved length | 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900 |
Actual average splice loss | 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS |
Splice time | 7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode |
Return loss | 60dB or greater |
Splicing modes | 100 splicer modes are available |
Splice loss estimate | Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate |
Attenuation splice function | Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator |
Storage of splice result | The last 2000 results to be stored in the internal memory |
Magnification | X / Y (300X magnification), or both X and Y simultaneously (160X magnification) |
Viewing method | By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor |
Tension test | 1.96 to 2.25N |
Operating condition | 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively |
Tube heater | Built-in auto-start tube heater with 10 heating modes and up to 20 for reference |
Tube heat time | 13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available |
Applicable protection sleeve length | 60mm, 40mm and a series of micro sleeves |
No. of splice/heating with battery | 200 times of splicing and heat shrinking under with BTR-09 |
Power supply | Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09 |
Terminals | USB2.0 ( Mini-B) for data and video signal transfer to PC |
Wind protection | Up to 15m/s wind velocity |
Dimensions | 146(W) x 159(D) x 150(H) mm |
Including wind protector, monitor, and rubber protector | |
Excluding rubber foot | |
Weight | 2.5 kg, with ADC-18 AC adaptor |
2.7 kg, with BTR-09 battery | |
Electrode life | 3000 arc-discharges |
Standard Package
Item | Description | Model No. | Qty |
1 | Fusion Splicer | FSM-80S with CLAMP-S70A | 1 pc |
2 | AC adaptor/battery charger | ADC-18 | 1 pc |
3 | AC power cord | ACC-XX | 1 pc |
4 | Spare Electrodes | ELCT2-20A | 1 pair |
5 | Cleaver | CT-30A | 1 pc |
6 | Battery Pack | BTR-09 | 1 pc |
7 | USB cable | USB-01 | 1 pc |
8 | Quick reference guide | M-80S/19S-E | 1 pc |
9 | Warning and cautions | W-70-E | 1 pc |
10 | Instruction Manual | M-70 | 1 pc |
11 | Alcohol Pot | AP-01 | 1 pc |
12 | Battery charge cord | DCC-18 | 1 pc |
13 | Carrying Case | CC-30 | 1 pc |
14 | Screw Driver | SD-01 | 1 pc |
- Fiber optic network installation
- Connector installations
- Optoelectronic device manufacturing
