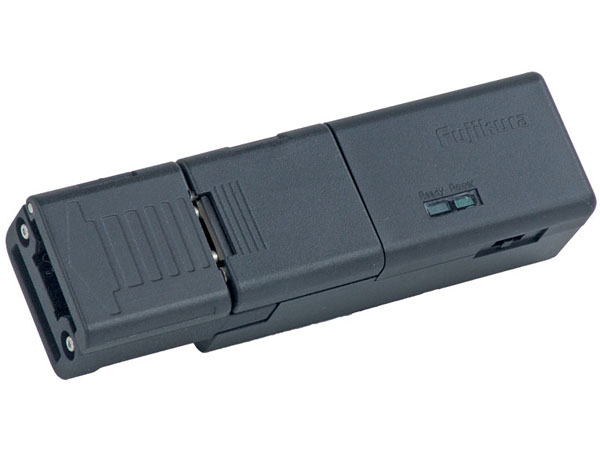

Fujikura HJS series Hot Jacket Stripper
The HJS-02, HJS-03 and HJS-03-24 hot jacket strippers provide superior ribbon and field-ribbonized stripping performance. They conserve energy with a Power Save feature when the splicer is operated by battery power. A temperature selection switch provides easy field optimization for different fibers or operating conditions. An optional single-fiber adapter may be used to provide easy single-fiber capability for difficult-to-strip fibers. These strippers accept all Fujikura field and factory splicer designed fiber holders. The HJS-03 is a battery powered hot jacket stripper specifically designed for use with the Splice Mate fusion splicer but it can be used in other applications. The HJS-03-24 hot jacket stripper is designed for smooth and controlled stripping of 24-fiber ribbon.
| Part No. | HJS-02, HJS-03 | HJS-03-24 |
| Applicable Fiber Count | 1 to 12 Fiber Ribbon | 1 to 24 Fiber Ribbon |
| Ribbon Thickness | 250 µm to 400 µm | 250 µm to 400 µm |
| Stripping Length | 35 mm maximum | 35 mm maximum |
| Typical Heating Time | 3 second Normal Mode 8 second Power Save Mode |
3 second Normal Mode 30 second Power Save Mode |
| Standard Heating Temperature | 100ºC | 100ºC |
| Dimensions (W x D x H) | 107 mm x 40 mm x 29 mm | 149 mm x 58 mm x 36 mm |
| Weight | 195 g (0.43lb) | 300 g (0.66 lb) |
| Power Supply | 12V DC | 12V DC |
| Operating Conditions | -10ºC to 50ºC | -10ºC to 50ºC |
| Storage Conditions | -40ºC to 80ºC | -40ºC to 80ºC |
