GFS-16G Series Fiber Optic Terminal Box
- General Details
- Features
- Specifications
- Applications
- Ordering Information
Fiber Access Terminal (FAT) is a terminal box installed near the customer premises or multi-dwelling buildings for splitting and distribution drop cable to customer house, This box is generally made of plastic or SMC, with small size, lightweight, and neat optical fiber routing. The FAT fiber access terminal box support wall mounting, pole mounting, is an ideal device for FTTx/FTTH project.
Tarluz offers a full line of Fiber Access Terminal, the box is made of plastic, SMC or metal, the box able to distribution or splitting fiber cable, the cable capacity start from 2, 4, 8 until to 32 fiber cores, with SC, FC, ST, LC fiber panel for supporting different adapters.
GFS-16G Series terminal box is a 16-Port FTTH terminal box, made of PP (or other plastic material), can be installed with PLC splitter, suitable for indoor wall mounting or pole mounting applications. It is available for the distribution and terminal connection for various kinds of optical fiber systems, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores, or pigtails are connected.
- Totally enclosed structure
- Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution etc all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Support pole/wall mounting, aerial cable mounting installation, suitable for both indoor and outdoor use.
- Working temperature: -40℃~+85℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure: 70KPa~106Kpa
- Insertion loss: ≤0.3dB
- UPC return loss: ≥50dB
- APC return loss: ≥60dB
- The insulation resistance between the grounding device and the metal parts of the box is no less than 2 MΩ/500V (DC); IR≥2 MΩ/500V.
- The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
- FTTH GPON/GEPON network
- Telecommunication network
- CATV networks
- Data transmission networks
- LAN

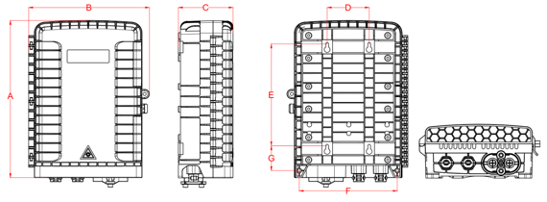

Model | Description | Size (A*B*C) | Max Capacity | Installation Size (D*E*F*G) | Into the largest cable diameter (mm) | Cable outlet size (mm) Interchangeable |
GFS-16G-3 | Splitter Box | 303*230*104 | 16 | 80*196*187*48 | 12 | 2*3 / Ø5 |
GFS-16G-4 | Splitter Box | 303*230*104 | 16 | 80*196*187*48 | 12 | 2*3 / Ø5 |
