Multi Core Fibre (MCF)
General Details

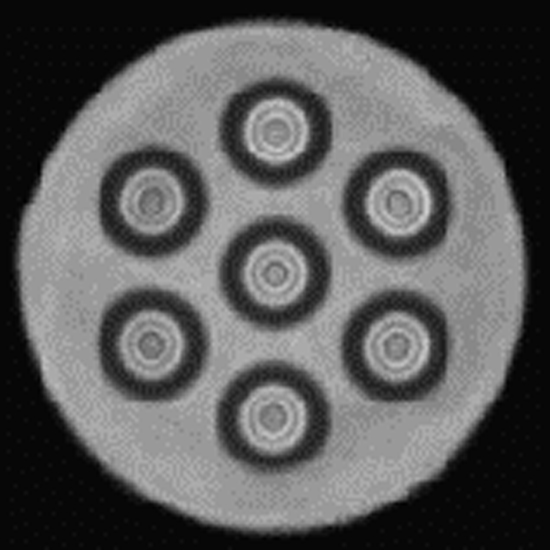

Multi core fibre (MCF) is a new kind of fibre with several separate fibre cores co-existed in the same cladding. The MCF can achieve low inter-crosstalk in long SDM (space division multiplexing) optical transmission by adopting the seven-core structure and F-doped cladding, which has a typical promising future in the optical transmission field. The advantage of multi-core fibre is that it can realize transmitting several light signals through different channels over a single fiber.
Features
- Single fibre with spatial superchannels
- Ultra-low cross talk between cores
- Excellent fibre geometric consistency
- Low fibre loss
Specifications
| Fibre Type | MCF 7-42/150/250(SM) | |
| Part No. | MC1010-A | |
| Type Description | Low Crosstalk Seven Core MCF | |
| Optical Properties | Value | Typical |
| Cross Talk (Adjacent Core) (dB/ km) | ＜-45 | -50 |
| Attenuation@ 1310nm (dB/km) | ＜0.45 | 0.4 |
| Attenuation@ 1550nm (dB/km) | ＜0.30 | 0.25 |
| Zero Dispersion Wavelength (nm) | 1290 – 1320 | 1308 |
| Dispersion@ 1550nm (ps/nm·km) | 17.0 ± 1.0 | 17.1 |
| PMD (ps/km½） | ＜2 | ＜1.5 |
| Cable Cut off Wavelength λcc (nm) | ＜1300 | 1250 |
| Mode Field Diameter@ 1310nm (μm) | 8.5 ± 0.5 | 8.4 |
| Mode Field Diameter@ 1550nm (μm) | 9.5 ± 0.5 | 9.5 |
| Geometrical Properties | ||
| Core Diameter (μm) | 8.0 ± 0.5 | 7.9 |
| Core-to-core (adjacent) Distance (μm) | 41.5 ± 1.5 | — |
| Cladding Diameter (μm) | 150.0 ± 2.0 | — |
| Coating Diameter (μm) | 245.0 ± 10.0 | — |
| Coating Description | ||
| Coating Type | UV-Acylate | High temperature coating is available. |
| Operating Temperature Range(℃) | -40 to +70 | — |
| Mechanical Properties | ||
| Short Term Bend Radius (mm) | ≥ 7.5 | — |
| Long Term Bend Radius (mm) | ≥ 15 | — |
| Proof Test Level (kpsi) | ≥ 50 | — |
Applications
- Extremely large capacity transmission system
- Large-capacity multi-task access
- Distributed fibre sensors
- Medical equipments
