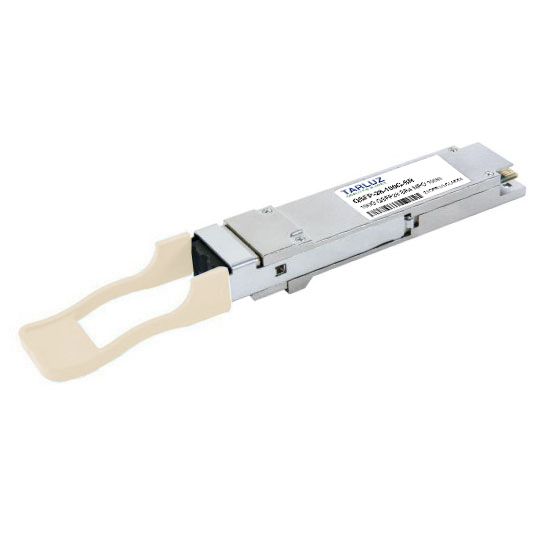

QSFP28-100G-SR4 Optical Transceiver Module
100G QSFP28-SR4, MTP/MPO Connector, MMF, Wavelength: 850nm, Max. 100m over OM4 Fiber
General Details
TARLUZ QSFP28 module is a 4-channel transceiver capable of transmitting and receiving 100 Gbps simultaneously, the QSFP28 transceiver performs at high speeds while consuming extremely low power-allowing for >50% reduction in power consumption compared to 4 SFP+ interconnects.
Features
- 4 independent full-duplex channels
- Up to 28Gb/s data rate per channel
- QSFP28 MSA compliant
- Compliant to IEEE 802.3bm 100GBASE-SR4
- Up to 100m OM4 MMF transmission
- Operating case temperature: 0 to 70ºC
- Single 3.3V power supply
- Maximum power consumption 3.5W
- MTP/MPO optical connector
- RoHS-6 compliant
Specifications
| Parameters | Specifications |
| Form Type | QSFP28 |
| Max Data Rate | 103.1 Gbp |
| Optical Components | 4x VCSEL |
| Wavelength | 850nm |
| Max Cable Distance | 100m@OM4 |
| Interface | MTP/MPO-12 |
| Cable Type | MMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
Applications
- Rack to Rack
- Data Center
- Infiniband QDR, DDR and SDR
- 100G Ethernet
Ordering Information
| Type | Distance | Data Rate | Fiber | Interface | Temp. |
| TL-QSFP28-100G -SR4 | 100m | 103G | MMF | MPO/MTP-12 | 0 ~ 70°C |
| TL-QSFP28-100G -eSR4 | 300m | 103G | MMF | MPO/MTP-12 | 0 ~ 70°C |
| TL-QSFP28-100G -SR4D | 100m | 40/103G | MMF | MPO/MTP-12 | 0 ~ 70°C |
