RMTB01 Series Fiber Optic Patch Panel
- General Details
- Features
- Specifications
- Application
General Details

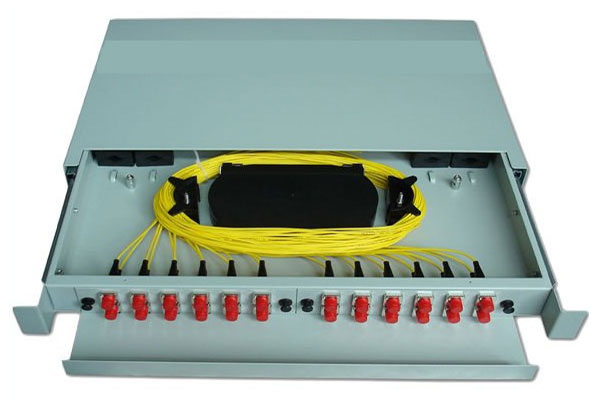

Tarluz RMTB01 series fiber optic terminal box is Made of cold-rolling steel, static spreading-plastic, It support 19″ and 21″ cabinet, which is convenient to install and dismantle the splice tray could piled up thus could support fiber core from 12 to 96; The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray; while for the cable fixation, the is adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly; The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Features
- Applicable in the branch connection of fiber termination, working as distribution box
- 19” or 21” standard structure, rack mounted
- Available for the installation of FC, SC, SC shape Duplex LC adapters
- Size: can meet with customer’s requires
- The body is made of cold rolled steel sheet, with electrostatic spraying
- We can install adapters for you, available for FC, SC, SC shape Duplex LC
Specifications
Name | Specification | Dimension (mm) | 6/12 core integrative module |
RMTB | 12 core | 482*284*43 | install 2pcs integrative module |
24 core | 482*284*87 | install 4pcs integrative module | |
48 core | 482*284*132 | install 8pcs integrative module | |
72 core | 482*284*176 | install 12pcs integrative module | |
96 core | 482*284*220 | install 16pcs integrative module |
Application
- Telecommunication networks
- CATV Networks; LAN Network
- Active device termination
- FTTH
