Special Plastic ADSS/OPGW Splice Closures
OPGW Splice Closures, ADSS Splice Closures
Categories: Cable Management, Fiber Optic Splice Closures
- General Details
- Feature
- Specification
- Application
- Related Products
General Details
This product is applicable to connection and protection of special power cable OPGW (Optical Fiber Composite Overhead Ground Wire) and ADSS (All Dielectric Self-Supporting Optical Fiber Cable), which is equipped with the function of straight-through joint and branch joint and fixing method of joint box includes pole-use and tower-use.
Feature
- High mechanical performance, good sealing performance
- High Strengths Plastic, whether resistance
- Adjustable Cable Clamp not damage cable
- Support pole mounting, tower mounting
Specification
Maximum capacity | 12-72core |
Fiber bending radius | 40mm |
Maximum Cable Diameter | 18.5mm |
Each disc retention fiber length | 1.2m |
Material | High Strength Plastic |
Resistance strength | 15kV direct-current, 2 Min Not breakdown |
Anti-vibration performance | 106 Time |
Lateral pressure | ≥2000N |
Sealing performance | 80kPa, 72 H, Constant pressure. |
Main dimensions | Ø200mm x 470mm (Inner diameter 180mm) |
Net weight | 6.8Kg |
Working Temperature | -25°C ~ +60°C |
Application
Related Products

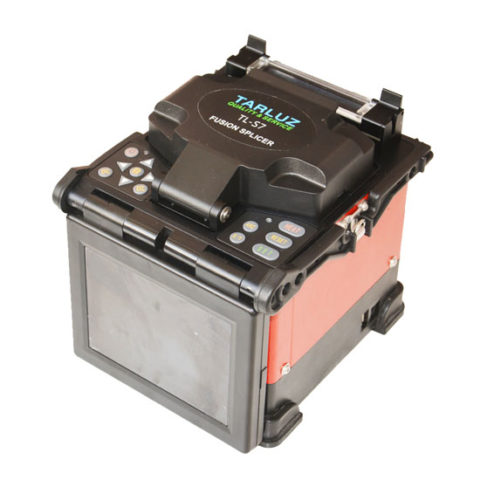

TL-S7 FTTH Fusion Splicer
