The following is a list of optical testing tools used for FTTx (Fiber to the x) network: 1. VFL (visual fault locator) is capable continuity check fiber link up to 15km, break/bend visual identifier for fibre along patch panel/hub areas, It is mainly applied in fibre link construction and troubleshooting at locations where fibres are accessible. […]
With the technological evolution occurring in data centers, test requirements dramatically changed for the fiber networks that connect mission-critical servers, networking and storage devices. Selecting the proper OTDR to test your network not only strengthens its reliability, but also improves how quickly and efficiently the job is done, as well as documenting the quality of […]

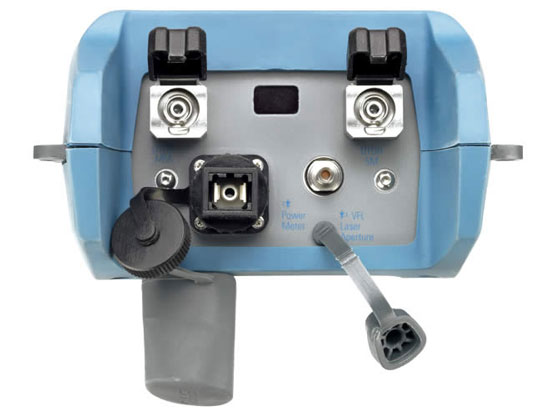

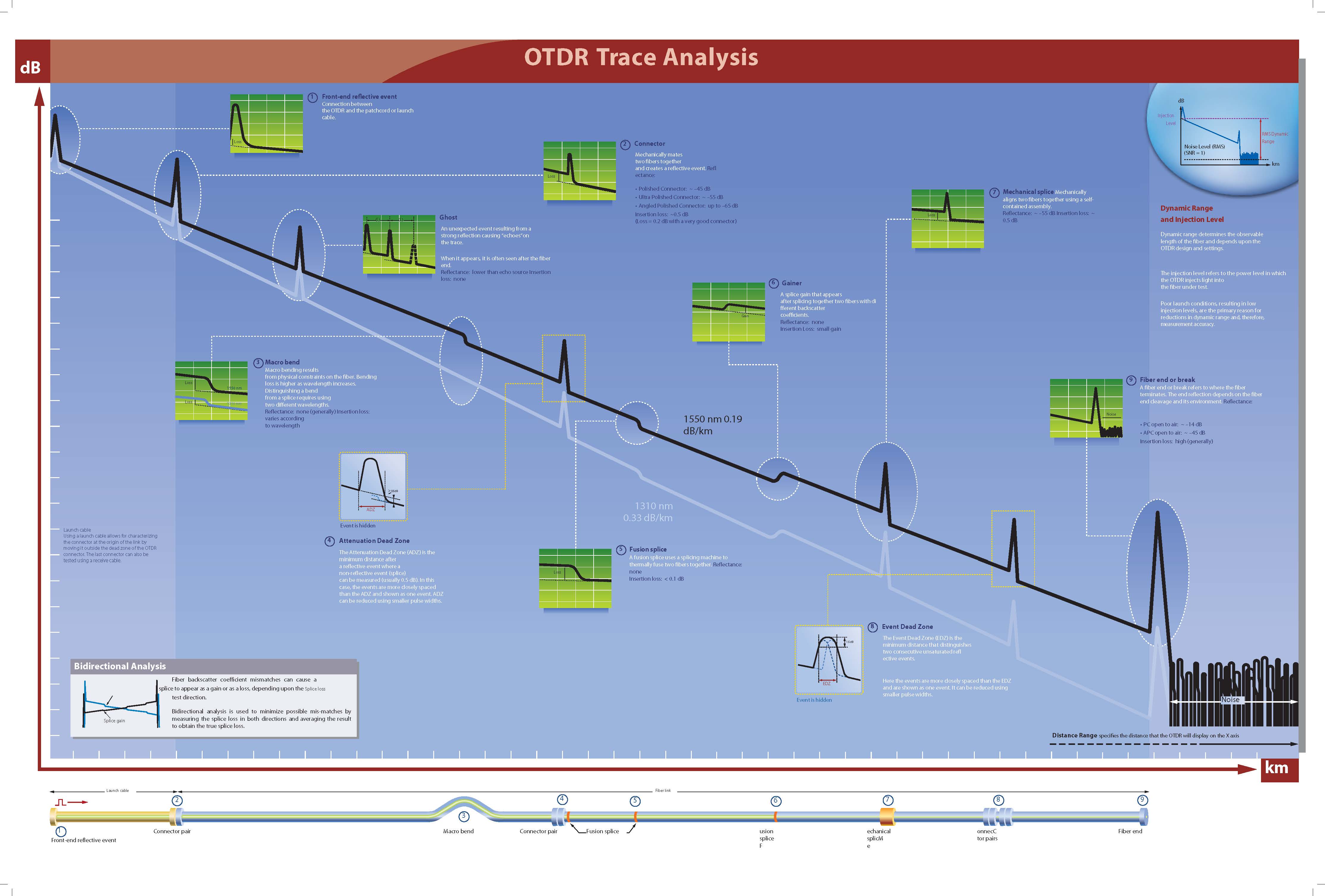

An OTDR sends short pulses of light into a fiber. Light scattering occurs in the fiber due to discontinuities such as connectors, splices, bends, and faults. The OTDR then detects and analyzes the backscattered signals. The signal strength is measured for specific intervals of time and is used to characterize events. The OTDR calculates distances […]
Problem Cause Solution The application displays a message indicating that a “Non-resolved fiber end” event has been found. The fiber under test is too long. Ensure that the fiber under test is shorter than the maximum length the OTDR can measure. The application displays message indicating that a “live fiber error” occurred and the fiber […]
If your fiber optic cable is not properly aligned and/or connected, you will notice heavy loss and reflection. Properly cleaning and connecting optical fibers to OTDR is important, please follow the following steps to clean the fibers and connecting it to OTDR. To connect the fiber optic cable to the port: 1. Inspect the fiber […]
On a transmission network, one cause of insertion loss on a fiber link is macro bending. This is commonly caused by tight installation or handling. As Fiber-to-the-Home (FTTH) networks lead to a significant increase of fiber installation in the last mile, the space constraints become increasingly stringent. This is driving the need for distributions hubs […]
Error Messages Messages may appear on the screen during operation. This section describes the error messages and how to respond to them. Messages can be displayed in English or Japanese (see section 19.1). If the corrective action states that serving is required, contact your nearest YOKOGAWA dealer. In addition to the following messages, there are also communications error […]
An optical time-domain reflectometer (OTDR) is an optoelectronic instrument used to characterize an optical fiber. An OTDR is the optical equivalent of an electronic time domain reflectometer. It injects a series of optical pulses into the fiber under test and extracts, from the same end of the fiber, light that is scattered (Rayleigh backscatter) or […]
Fusion vs. Mechanical Splicing Unfortunately, damage to fiber optic connectors is common in FTTA installations. If a fiber connector is damaged, either a whole new cable can be pulled or the damaged connector can be replaced. Fusion splicing is one method for attaching a pre-terminated fiber connector with a fiber stub (called a pigtail) to the broken […]
On a data transmission network, one of the main cause for insertion loss on a fiber link is macro bending. This is commonly caused by tight installation or handling. As Fiber-to-the-Home (FTTH) networks lead to a significant increase of fiber installation in the last mile, even G657 fiber are used. the space constraints become increasingly […]
