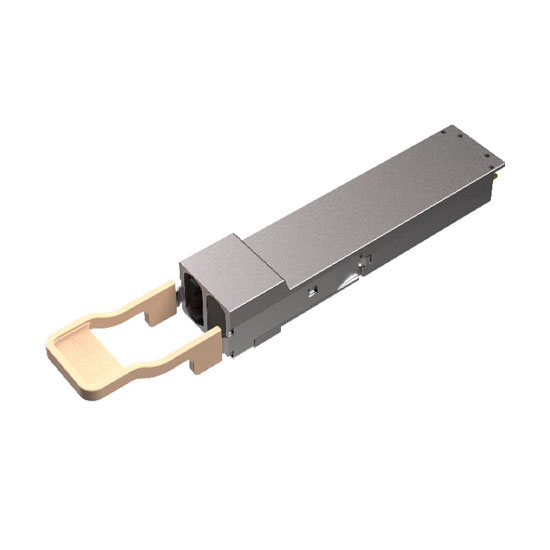

800GB OSFP SR8 850nm 50M InfiniBand NDR Optical Transceiver – Flat Top
800G OSFP SR8, Dual MPO/MTP-12 Connector, MMF, 50m over MMF OM4 or 30M over MMF OM3 Flat top for DGX H100/Cedar-7
General Details
This 800Gb/s OSFP800 SR8 optical module is designed for 50m (Host FEC required and OM4 fiber) optical communication applications. It converts 8-ch of 100Gb/s (PAM4) electrical data to 8-ch of parallel optical signals. This optical module with a dual MTP/MPO-12 fiber interface or an MTP/MPO-16 fiber interface.
NVIDIA/Mellanox® MMA4Z00-NS-FLT Compatible 800G 2xSR4/SR8 InfiniBand NDR Optical Transceiver Module(Twin-port OSFP, 850nm, 30m (OM3) /50m (OM4), Two MPO-12/APC, DOM, for MMF, Flat Top).
Features
- Supports 850Gb/s aggregate bit rate
- Integrated 850nm VCSEL array and PD array
- 800GAUI-8 electrical interface
- Maximum link length of 30m/50m on MMF OM3/OM4
- Dual MTP/MPO-12 fiber interface
- Commercial case temperature range of 0°C to 70°C
Specifications
| Parameters | Specifications |
| Form Type | OSFP Flat top |
| Max Data Rate | 800Gbps |
| Optical Components | VCSEL |
| Wavelength | 850nm |
| Max Cable Distance | 30m/50m@MMF OM3/OM4 |
| Interface | Dual MTP/MPO-12/APC |
| Cable Type | MMF OM3, OM4 or OM5 |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| DOM Support | Yes |
Applications
- 800G Ethernet
- Data centers and cloud networks
- Infiniband Network
